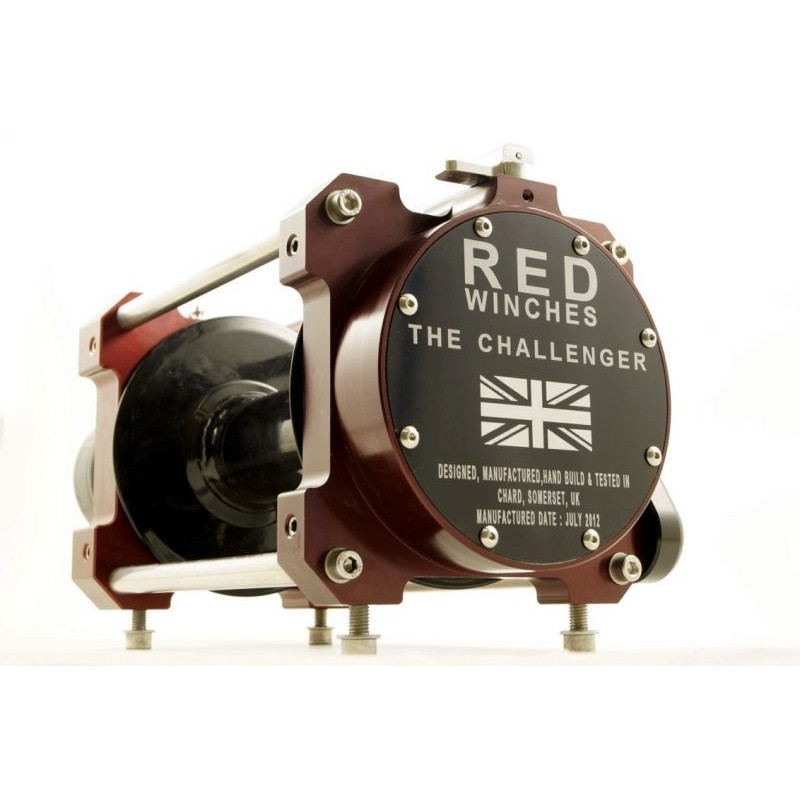

RED WINCHES CHALLENGER

Description

A Precision Engineered, High Performance Off-Road Hydraulic Winch

The Challenger Winch System is the entry-level system designed to meet the needs of the challenge / off-road events and situations the average person may encounter when taking their vehicle off road seriously.
It will effectively and reliably recover you and your vehicle every time when you most need it. Its power and recovery ability will remain constant throughout the winching process.

The Challenger winch is part of a group of winches that have undergone extensive military testing and their design properties are the same as currently fitted to various military vehicles. This high grade, precision engineered, high performance winch is capable of operating in the most demanding of situations. The small compact size combined with its pulling power makes it an ideal winch for maximum impact when faced with minimal installation space.

Winch Hydraulics

The winch is driven as standard by a 150cc hydraulic motor supplied with 2 x ½" BSP ports 'A' & 'B'. A solenoid valve can be supplied to control this winch. Various products can be supplied to control the solenoid valve remotely, from a dash mounted switch to a wireless remote, please ask for details.

Winch Drive System

The winch drum is unpainted on the core to support the capstan effect performed on the drum by the rope tightening under load. During trials this has been shown to give a much better long lasting grip onto the drum. A minimum of eight (8) wraps of the drum must be seen on the first layer before winching under load.

Drum Capacity & Pulling Material

• Maximum length of 30m (90ft) of 12mm diameter synthetic rope
• All rope variants can be supplied, please ask for details
• Wire rope can be supplied, please ask for details

Gearbox

Single speed planetary gearbox with fully integrated hardened gears. The ratio of the gears: 6:1.

Performance Data

At 200 Bar Hydraulic Pressure at 26 L/min (assumed engine speed of 1000rpm):

Braked Data

The winch can have a braked unit fitted on the 250cc & 200cc motor options, adding even more control and power.
These braked winches while powerful are suited to the slower recovery situations where speed is not the top priority

Delivery varies between 2 days and 3 weeks

For any question, please contact OffRoad Projects.
