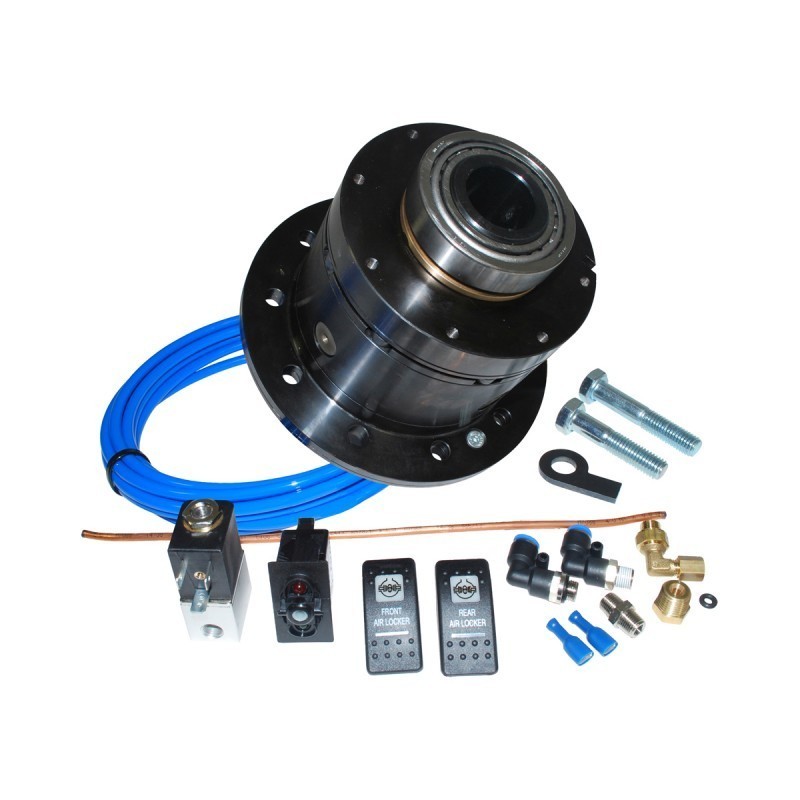

ASHCROFT LOCKER P38

Description

3000 Ashcroft Air lockers sold as at 26/9/14 with zero failures to date !

There are many types of lockers available for landrover vehicles but all seem to have a weak point or Achilles heel, so we set out to design a locker from a blank canvas to be cost effective, strong and without the weaknesses of other designs.

We wanted a selectable locker which would fit into the rover diff casing with minimal installation work, i.e, without mods to the axle housing. We looked at electric and pneumatic activation and decided pneumatic was preferable for reliability and simplicity. One of the key requirements for our design was zero air leaks as this is one of the main issues with other air operated lockers. To achieve this we opted for a static piston rather than the rotating seal used on other air lockers, which was prone to leaks. We also wanted to ensure we had a full 6mm of engagement when locked as other air lockers have just 2.5mm and are prone to slipping out of lock when loaded.

Delivery varies between 2 days and 3 weeks

For any question, please contact OffRoad Projects
