4″ – 21″ Lengths Available
High Powered 5 Watt LEDs
Up to 38,016 Raw Lumens
Integrated Thermal Management
PWM Integrated Dimming Circuity
Harnessing Unbeatable Power

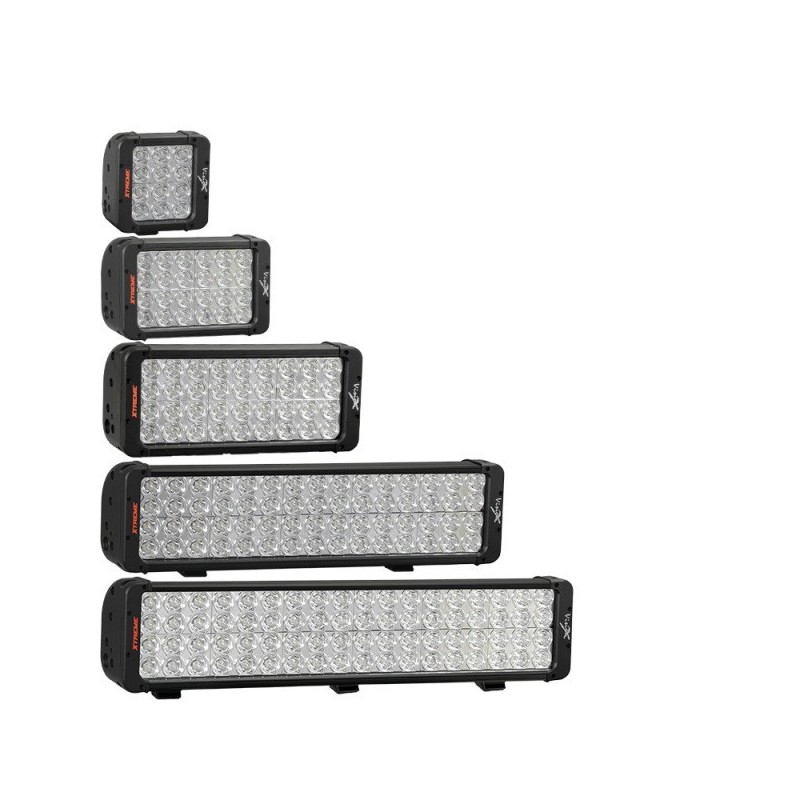

Whether you choose the 4″ bar or the 50″ bar, you can rest assured that the LEDs inside of the Xmitter Prime Xtreme are the best 5-Watt LEDs obtainable. Top-binned and perfectly constructed, these high powered LEDs are capable of outputting 528 raw lumens each.
The Brightest LED Light Bar On The Market
Since the Xmitter Prime Xtreme Single Stack was first launched, it has held the title of “Most Raw Lumens Per Inch”. Pumping out nearly 1,000 raw lumens per inch, the Xmitter Prime Xtreme is unmatched in terms of effective power and performance.
Prime Drive Technology
Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.
Specifications
| ITEM # | PART # | BEAM | LENGTH | # OF LEDs | RAW LUMENS | EFFECTIVE LUMENS | WEIGHT | INPUT VOLTS | WATTS | AMP DRAW |
| XIL-PX2.610 | 9116686 | 10° | 4.70″ | 12 | 6,336 lm | 4,440 lm | 4.62 lb | 9-32V | 60 | 5.0A |
| XIL-PX2.640 | 9116778 | 40° | 4.70″ | 12 | 6,336 lm | 4,440 lm | 4.62 lb | 9-32V | 60 | 5.0A |
| XIL-PX2.1210 | 9115962 | 10° | 7.90″ | 24 | 12,672 lm | 8,880 lm | 8.15 lb | 9-32V | 120 | 10.0A |
| XIL-PX2.1240 | 9116051 | 40° | 7.90″ | 24 | 12,672 lm | 8,880 lm | 8.15 lb | 9-32V | 120 | 10.0A |
| XIL-PX2.1810 | 9116143 | 10° | 11.10″ | 36 | 19,008 lm | 13,320 lm | 9.92 lb | 9-32V | 180 | 15.0A |
| XIL-PX2.1840 | 9116235 | 40° | 11.10″ | 36 | 19,008 lm | 13,320 lm | 9.92 lb | 9-32V | 180 | 15.0A |
| XIL-PX2.3010 | 9116327 | 10° | 17.50″ | 60 | 31,680 lm | 22,200 lm | 13.45 lb | 9-32V | 300 | 25.0A |
| XIL-PX2.3040 | 9116419 | 40° | 17.50″ | 60 | 31,680 lm | 22,200 lm | 13.45 lb | 9-32V | 300 | 25.0A |
| XIL-PX2.3610 | 9116501 | 10° | 20.60″ | 72 | 38,016 lm | 26,640 lm | 15.21 lb | 9-32V | 350 | 30.0A |
| XIL-PX2.3640 | 9116594 | 40° | 20.60″ | 72 | 38,016 lm | 26,640 lm | 15.21 lb | 9-32V | 350 | 30.0A |
Delivery varies between 2 days and 3 weeks
For any question, please contact OffRoad Projects
No customer reviews for the moment.
