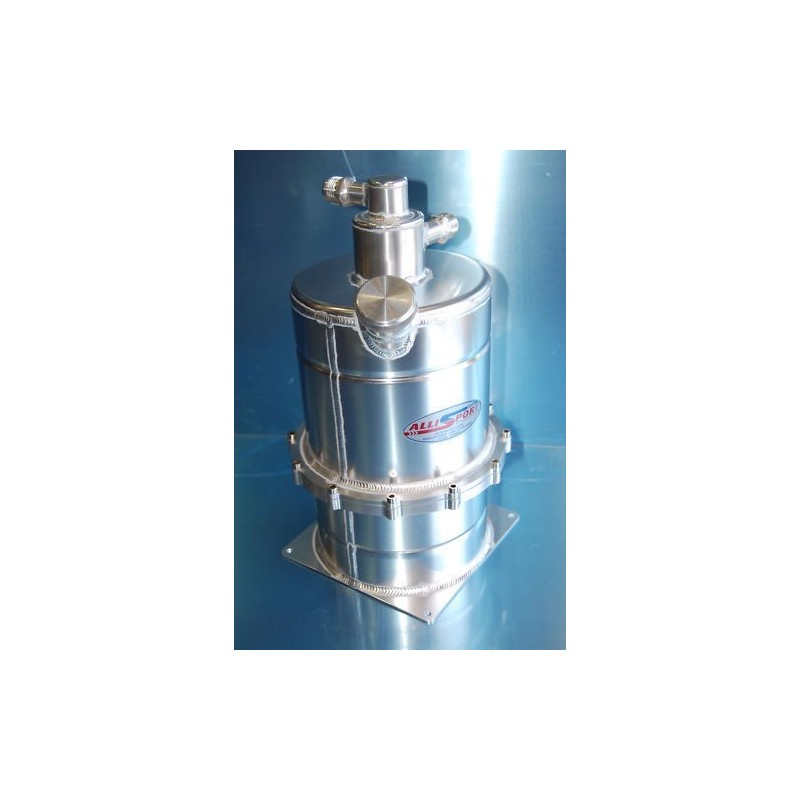

Easy-Clean Dry Sump Tank ALLISPORT

Product Description

This is a high quality product intended for use in many disciplines of motor sport and is designed to be easily dismantled for cleaning.

The 12 bolt CNC machined clamp ring has an integral O ring to ensure 100% oil seal and is fully TIG welded by hand in house with a fully baffled breather to eliminate the common problem of surge returning up the breather pipe.

Oil scavenge pipe is located centrally in the tank and the return pipe causes a “swirl effect” helping to remove air from the oil.

Removable internal baffles help to stop oil surge in extreme driving conditions.

Note – we recommend the use of a breather catch tank with this product as many events do not allow open breathers.

This product is for customers using engine components requiring the best possible dry sump system.

AlliSport concentrate on manufacturing products with a finish second to none, achieved by our skilled in house team of fabricators and TIG welders. We are happy to help with any bespoke projects.

12 bolt CNC machined clamp ring with integral O ring (Stainless bolts and O ring included)

1.5 gallon capacity

Baffled breather

Dimensions – Diameter 200mm, Total height 440mm

Dash 12 JIC connections and 20mm swaged breather

Full integral oil surge baffle system (removable for cleaning)

Strong 3mm thick 4 hole base mount 215mm square

CNC machined knurled alloy cap with O ring

Other cap designs available Other designs, connections and sizes also available
