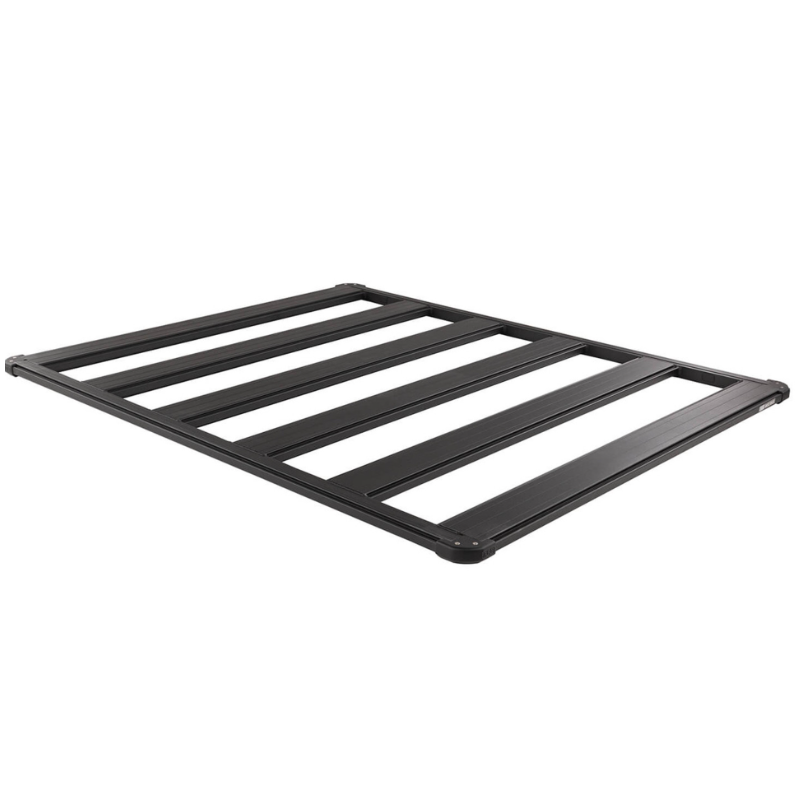

ARB BASERACK

🛠️ Product Description – ARB BASE Rack (Ref. ARB-1770040)

At ARB’s Australian facility, every design and engineering effort has gone into producing a roof rack that mounts as close as possible to the vehicle’s roof. The result is a lightweight yet strong structure, highly resistant and without the risk of bending under heavy loads.

Manufactured with single-piece extruded aluminium beams placed transversely, the rack offers excellent rigidity and reduces flex. This also facilitates the transport of long, narrow items. The entire frame is fully welded — no screws or rivets are used, except for removable corner trims to allow cable routing. Combined with a wide range of ultra-low supports, the final result is strong, secure and visually refined.

⚙️ Modular & Adaptable Design
One of the BASE Rack’s key strengths is its versatility. Sold as a flat platform, it can be easily transformed into a traditional rack with a full or partial perimeter basket depending on your needs.

The guard rail system is available for full, ¾, ¼ or side-only coverage. Rails are quickly and easily attached to the outer profile, allowing users to fully personalise the configuration with a railing system that installs in minutes.

🔗 Smart Cargo Attachment
Both the outer frame and internal beams feature integrated channels for attaching tie-down points such as rings, straps or hooks — simplifying secure transport of your gear.
ARB’s unique system also enables quick and tool-free installation and removal of accessories, making the process faster, easier, and safer.

Available in six different sizes and compatible with over 100 vehicle models, the BASE Rack positions itself as a new benchmark in roof rack systems for strength and flexibility.

📐 Technical Specifications – ARB-1770040

• Length: 2,125 mm

• Width: 1,285 mm

• Weight: approx. 22.8 kg

• Load capacity: 200 kg

🚙 Compatibility:
Ideal for larger roof spaces and dual cab setups.
